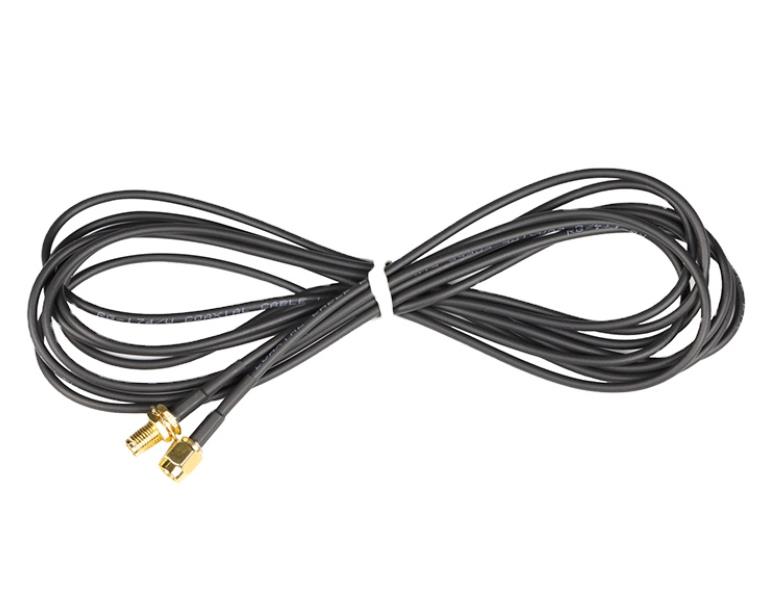

26.5GHz Economical Flexible Cable Assembly Cost-effective Coax Cable Assembly

Brand Name: Jiaoying

Number of Conductors:1

Amplitude stability:≤±0.05dB

Frequency:DC-18GHZ

Impedance:50Ω

Insulation Resistance:5000mΩ

Dielectric Withstanding Voltage: 2000V

Shielding Effectiveness:≥90dB

Velocity of Propagation:83%

VSWR:1.30Max

Phase Stability vs.Temperature:≤550PPM(-55℃ - 85℃)

Phase Stability vs.Flexsure:≤±0.05dB

 Lanxi Jiaoying Trading Co.,Ltd

26.5GHz Economical Flexible Cable Assembly Cost-effective Coax Cable Assembly

Detail: tech-information:

Frequency:DC-18GHZ

Impedance:50Ω

Insulation Resistance:5000mΩ

Dielectric Withstanding Voltage2000V

Shielding Effectiveness:≥90dB

Velocity of Propagation:83%

VSWR:1.30Max

Phase Stability vs.Temperature:≤550PPM(-55℃ - 85℃)

Phase Stability vs.Flexsure:≤±2°

Amplitude stability:≤±0.05dB

Mechanical and Environmental Characteristics

Cable Diameter:7.4mm

Min.Bend Radius:74mm

Operating Temperature Range:-55℃ - 165℃

Attenuation

Part No.3GHZ6GHZ12.4GHZ18GHZ

D18GHZ-RCD-0.5M0.28dB0.39dB0.56dB0.68dB

D18GHZ-RCD-1.0M0.42dB0.59dB0.85dB1.02dB

D18GHZ-RCD-1.5M0.55dB0.78dB1.13dB1.37dB

D18GHZ-RCD-2.0M0.69dB0.98dB1.41dB1.71dB

D18GHZ-RCD-3.0M0.97dB1.37dB1.98dB2.39dB

D18GHZ-RCD-5.0M1.52dB2.15dB3.11dB3.76dB

CW POWER (SEA LEVEL /25℃)965W679W469W387W
